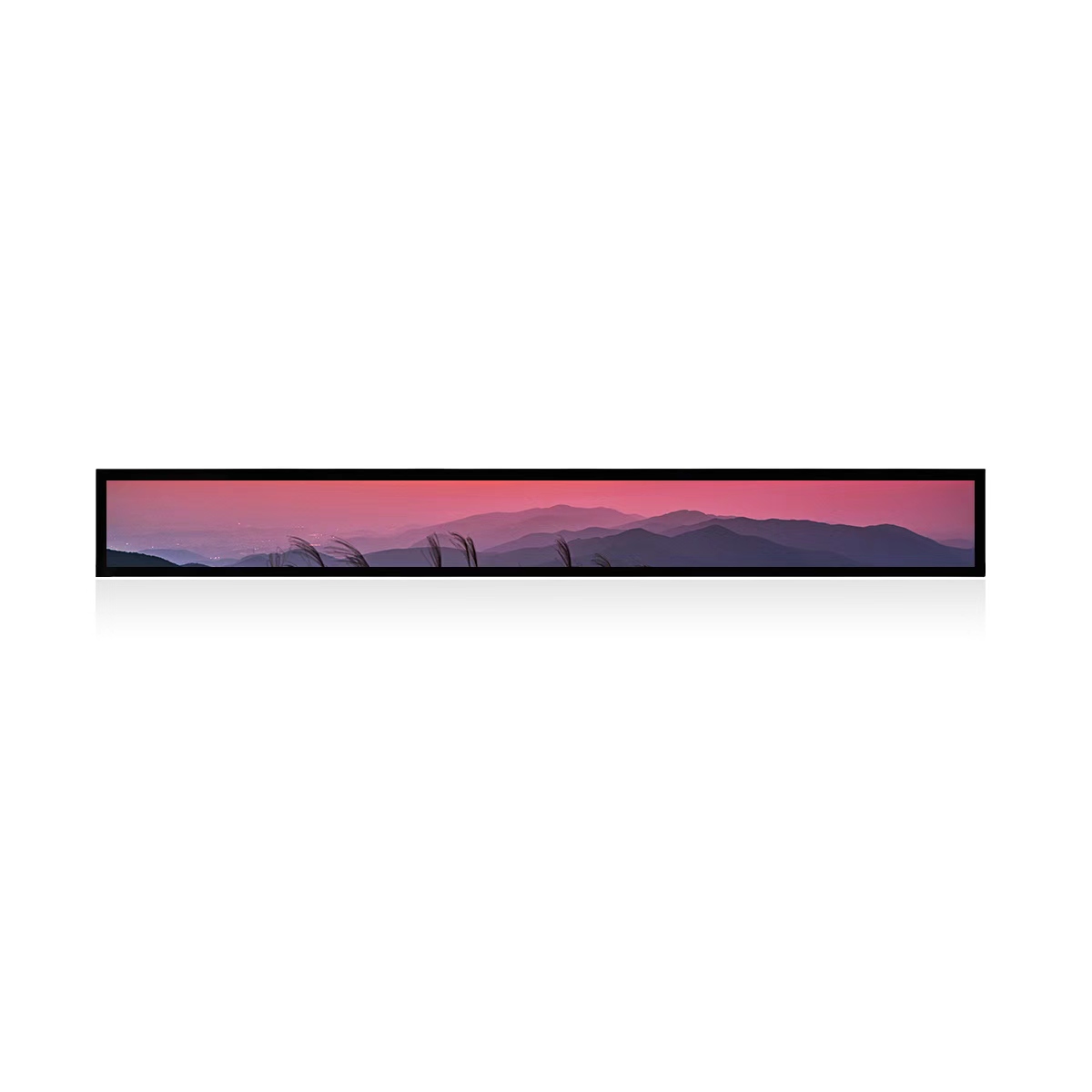

23.1inch Strip Module

Product Manual Download
Get a free quote

24-hour consultation hotline
13816749069

Product description
ItemsSpecification
Diagonal Size23.1inch Strip Module
Product NumberDR-S-23.1-A01
Resolution1920(V)x158(H)
Brightness400
Active Area(mm)585.6*48.19mm
Bezel Opening(mm)599*62*16.2mm
Response Time6(Typ.)(Tr+Td) ms
Viewing Angle178°(H) X 178°(V)
Pixel FormatWLED
Display Colors16.7M , 72% NTSC
Contrast Ratio3000:1
Power Supply100-240V(50/60Hz)
Power≤18W
Installationwall-mounted
materialMetal materials
Surface treatmentMetallic paint
CPURockchip PX30 Quad core ARM Cotex-A35
RAM1G DDR3
ROM8G EMMC
Memory extensionTF Card extension with the highest support for 64GB
SystemAndroid 8.1
IntetnetSupport 2.4G WIFI connection
Interfaces1*micro USB(OTG)，1*TF card,1*Type-c
Operating TempTemperature：0℃～45℃ Humidity：10%～85%
Storage TempTemperature：-20℃～60℃ Humidity：5%～95%
Lifespan30000 hours
Warranty periodOne Year
Packing listOTG cable，micro USB to USB 2.0
Adapeter(12V-2A)

Support for special requirements customization
