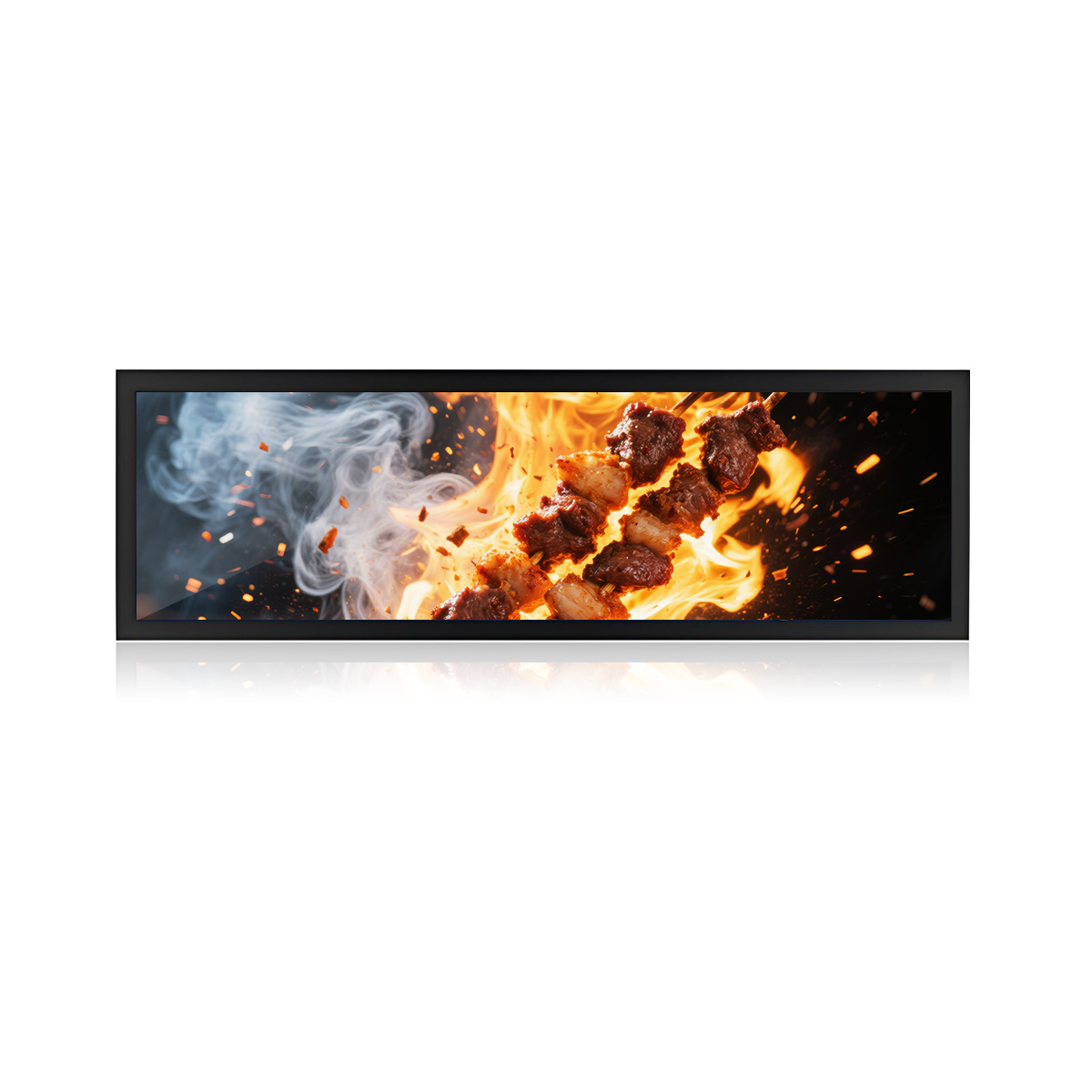

37.6inch Strip Module

Product Manual Download
Get a free quote

24-hour consultation hotline
13816749069

Product description
ItemsSpecification
Diagonal Size37.6inch Strip Module
Product NumberDR-S-37.6-A01
Resolution1920(V)x540(H)
Brightness500
Active Area(mm)919*258mm
Bezel Opening(mm)948*309*45mm
Response Time14(Typ.)(Tr+Td) ms
Viewing Angle178°(H) X 178°(V)
Pixel FormatWLED
Display Colors16.7M , 72% NTSC
Contrast Ratio1000:1
Power Supply100-240V(50/60Hz)
Power≤60W
InstallationEmbedded, wall-mounted
materialMetal materials
Surface treatmentBlack metal paint
CPURockchip PX30 Quad core ARM Cotex-A35
RAM1G DDR3
ROM8G EMMC
Memory extensionTF Card extension with the highest support for 64GB
SystemAndroid 8.1
IntetnetSupport 2.4G WIFI connection
Interfaces1*TF card slot ，2*USB( One compatible OTG -microUSB),1*RJ45
Operating TempTemperature：0℃～50℃ Humidity：10%～85%
Storage TempTemperature：-20℃～60℃ Humidity：5%～95%
Lifespan30000 hours
Warranty periodOne Year
Packing listOTG cable，micro USB to USB 2.0
Adapeter(12V-2A)

Support for special requirements customization
