Position：| Items | Specification |

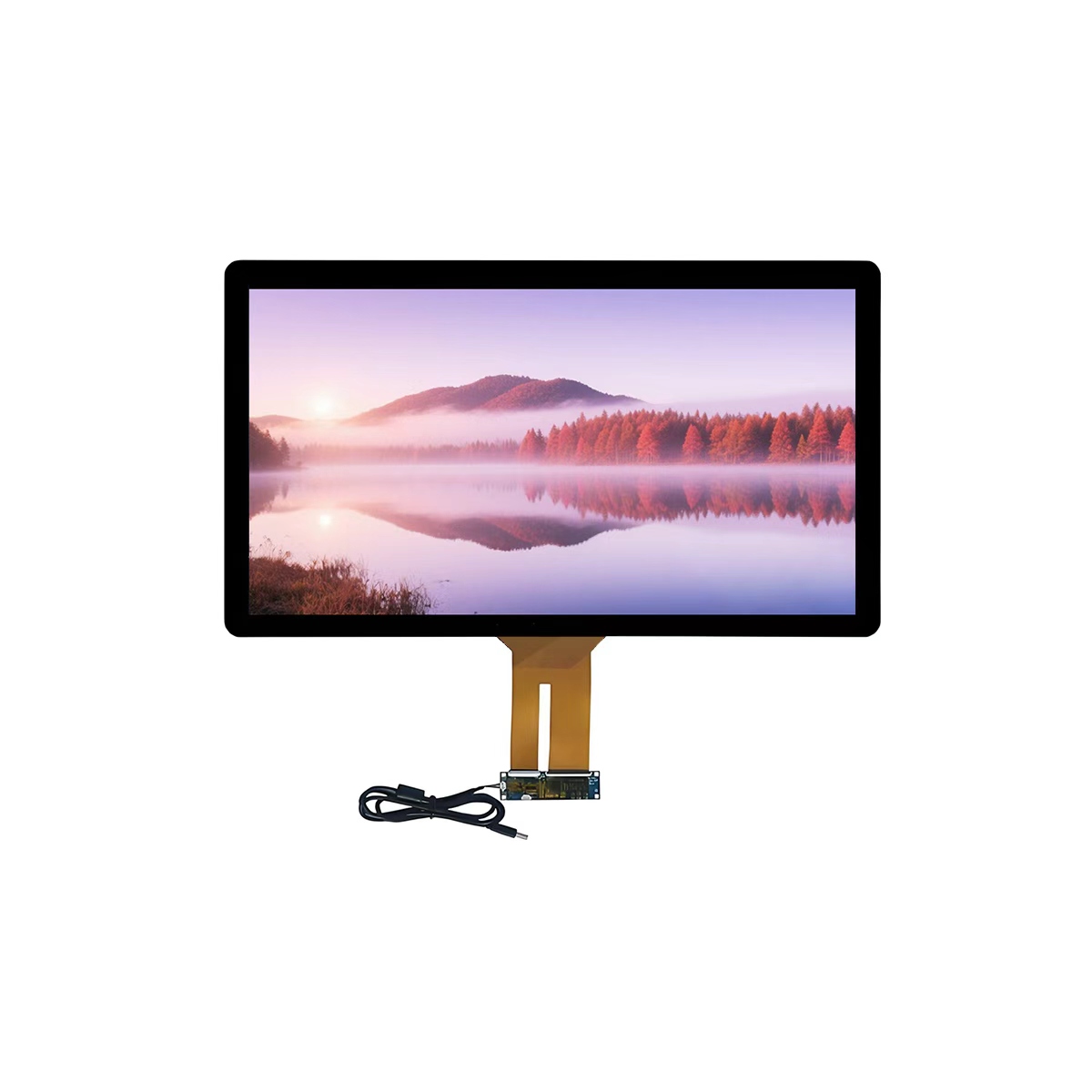

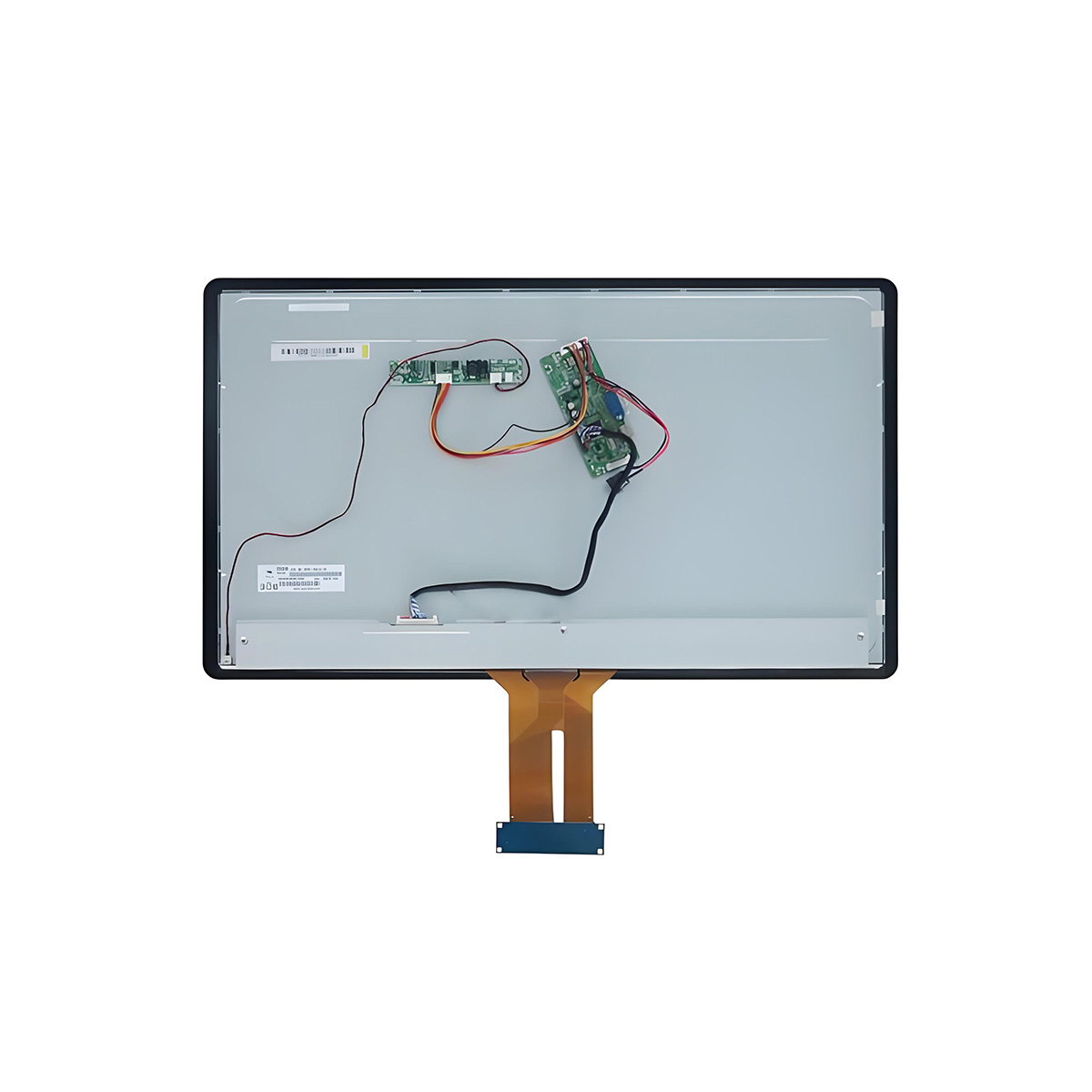

| Diagonal Size | 12.1inch Touch Module |
| Product Number | DR-T-G121-ILI-A01 |
| LCD | G121EAN01.2 |
| Resolution | 1280(RGB)×800 |
| Brightness | 1000 |
| Active Area(mm) | 261.12(W)×163.2(H) mm |
| Bezel Opening(mm) | 266.4(W)×172.6(H)×13.8(D) mm |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | AHVA, Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC |
| Contrast Ratio | 1000:1 |
| Surface | Antiglare, Hard coating (3H) |
| Power Supply | 3.3V |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Operating Temp | -30 ~ 85 °C |
| Storage Temp | -30 ~ 85 °C |
| Light Transmittance | >87% |
| Cover Glass | 2mm Tempered Glass |
| Surface Hardness | ≥6H |
| Touch Interface | USB |
| Touch Structure | G+G |
| Touch Controller | ILITEK |
| Operating environment | Industry |
| Warranty period | One Year |
