Position：| Items | Specification |

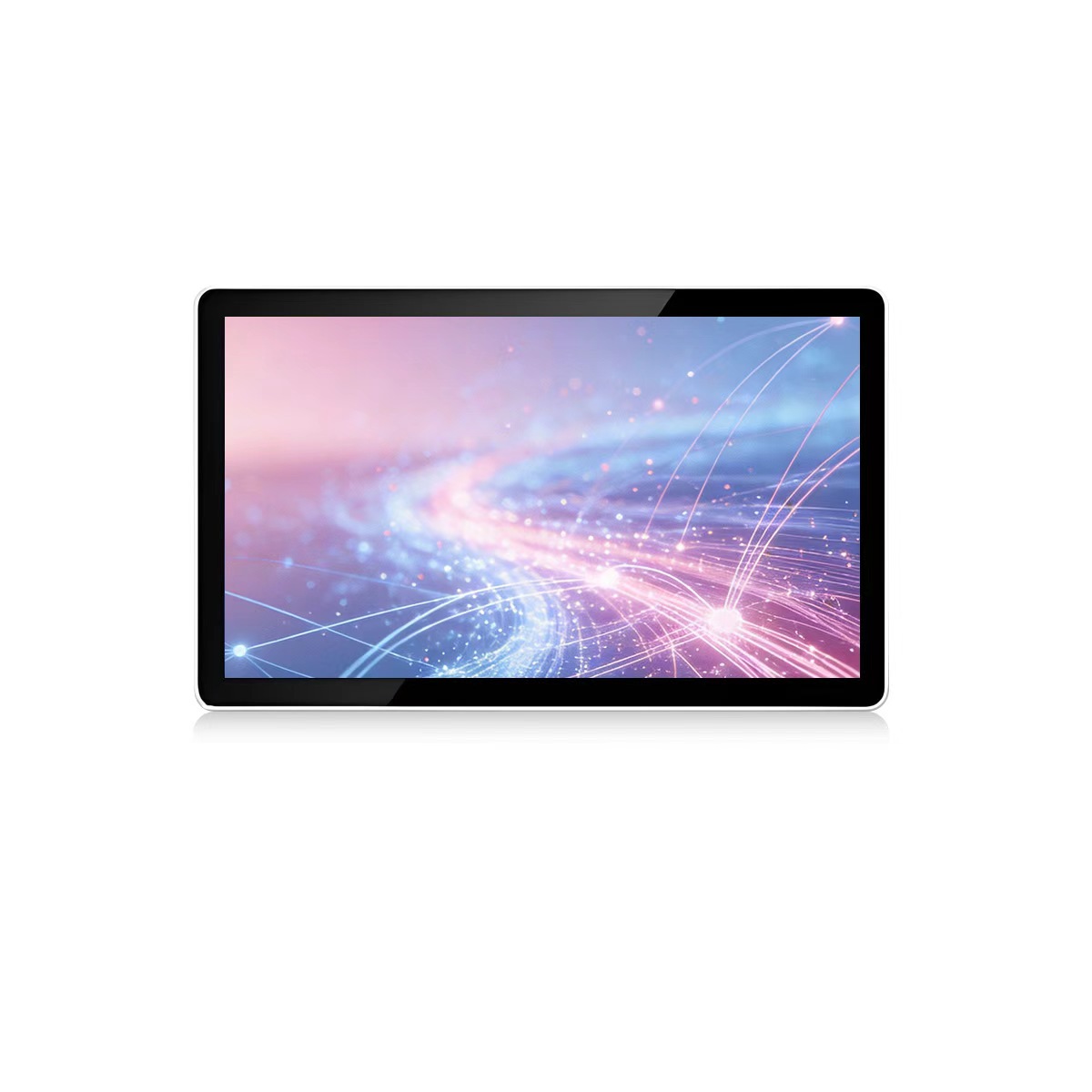

| Diagonal Size | 15inch Touch Module |
| Product Number | DR-T-G150-ILI-A01 |
| LCD | DV150X0M-N10 |
| Resolution | 1024(RGB)×768 |
| Brightness | 350 |
| Active Area(mm) | 304.128(W)×228.096(H) mm |
| Bezel Opening(mm) | 306(W)×230(H)×13(D) mm |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | ADS, Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC |
| Contrast Ratio | 1000:1 |
| Surface | Antiglare(Haze 25%)，Hard coating (3H) |
| Power Supply | 3.3V |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Operating Temp | -20 ~ 70 °C |
| Storage Temp | -20 ~ 70 °C |
| Light Transmittance | >87% |
| Cover Glass | 2mm Tempered Glass |
| Surface Hardness | ≥6H |
| Touch Interface | USB |
| Touch Structure | G+G |
| Touch Controller | ILITEK |
| Operating environment | Industry |
| Warranty period | One Year |
