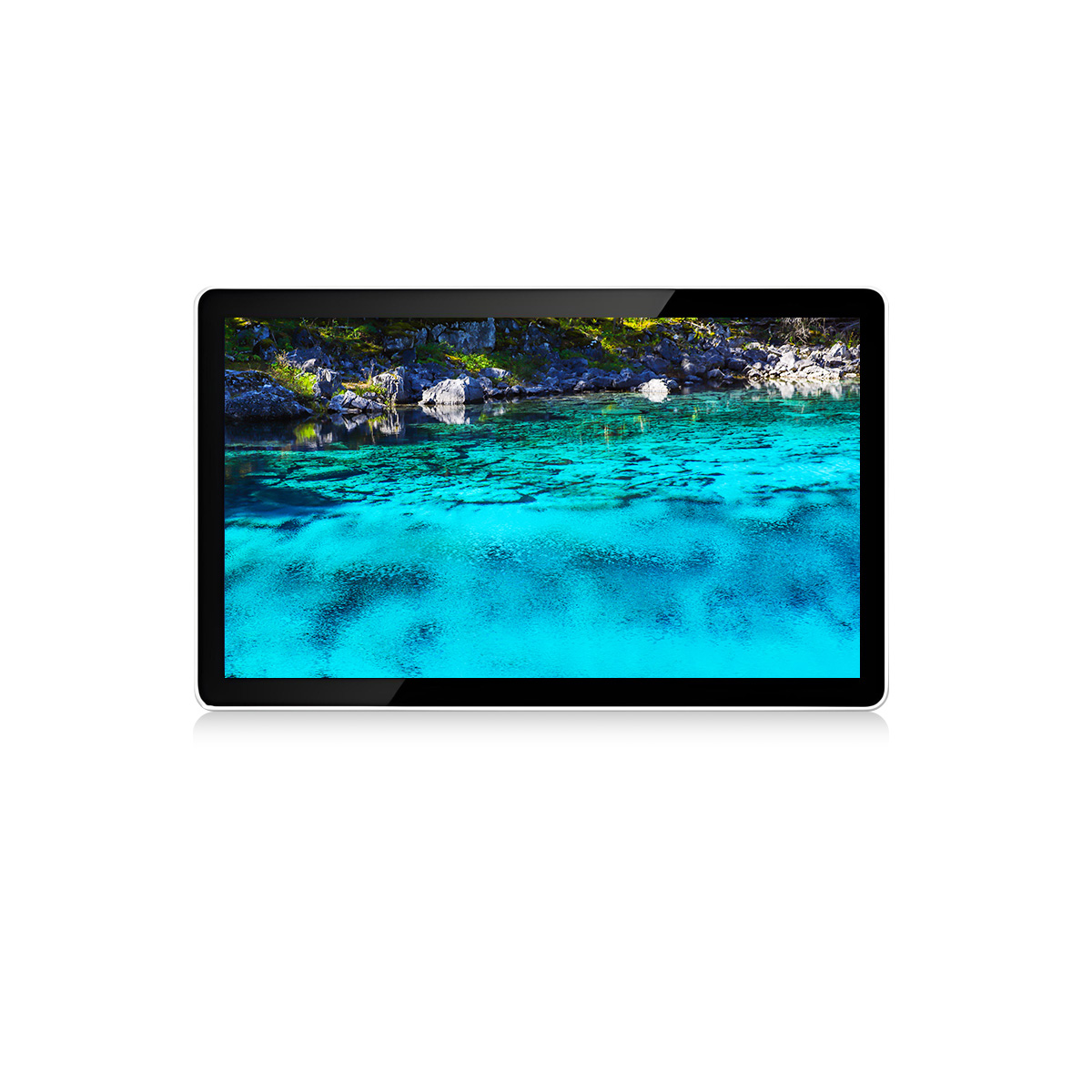

17inch Touch Module

Product Manual Download
Get a free quote

24-hour consultation hotline
13816749069

Product description
ItemsSpecification
Diagonal Size17inch Touch Module
Product NumberDR-T-G170-ILI-A01
LCDG170ETN02.1
Resolution1280(RGB)×1024
Brightness800
Active Area(mm)337.92(W)×270.336(H) mm
Bezel Opening(mm)342.3(W)×272.6(H)×15.2(D) mm
Response Time25 (Typ.)(Tr+Td) ms
Viewing Angle80/80/70/70
Pixel FormatRGB Vertical Stripe
Display ModeTN, Normally White, Transmissive
Display Colors16.7M , 72% NTSC
Contrast Ratio700:1
SurfaceAntiglare, Hard coating (3H)
Power Supply5.0V
Signal Interface LVDS (2 ch, 8-bit) 30 pins Connector
Operating Temp-30 ~ 85 °C
Storage Temp-30 ~ 85 °C
Light Transmittance>87%
Cover Glass3mm Tempered Glass
Surface Hardness≥6H
Touch InterfaceUSB
Touch StructureG+G
Touch ControllerILITEK
Operating environmentIndustry
Warranty periodOne Year
