Position：| Items | Specification |

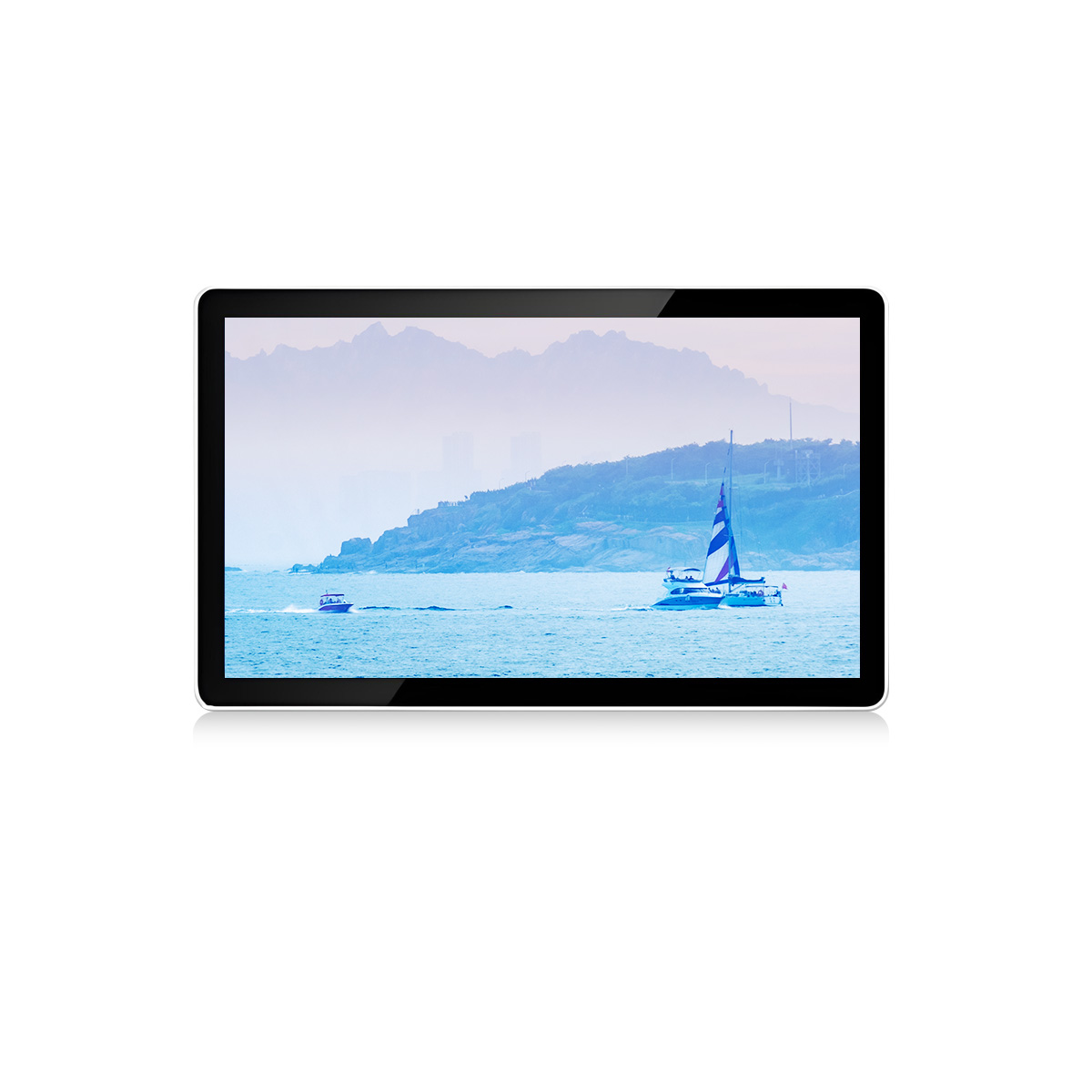

| Diagonal Size | 21.5inch Touch Module |
| Product Number | DR-T-G215-ILI-A01 |
| LCD | DV215FHM-NN0 |
| Resolution | 1920(RGB)×1080 |
| Brightness | 500 |
| Active Area(mm) | 476.064(W)×267.786(H) mm |
| Bezel Opening(mm) | 481.23(W)×270.1(H)×15.4(D) mm |
| Response Time | 14 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | ADS, Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC |
| Contrast Ratio | 1000:1 |
| Surface | Antiglare, Hard coating (3H) |
| Power Supply | 5.0V |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Operating Temp | 0 ~ 50 °C |
| Storage Temp | -20 ~ 60 °C |
| Light Transmittance | >87% |
| Cover Glass | 2mm Tempered Glass |
| Surface Hardness | ≥6H |
| Touch Interface | USB |
| Touch Structure | G+G |
| Touch Controller | ILITEK |
| Operating environment | Industry |
| Warranty period | One Year |
