Position：| Items | Specification |

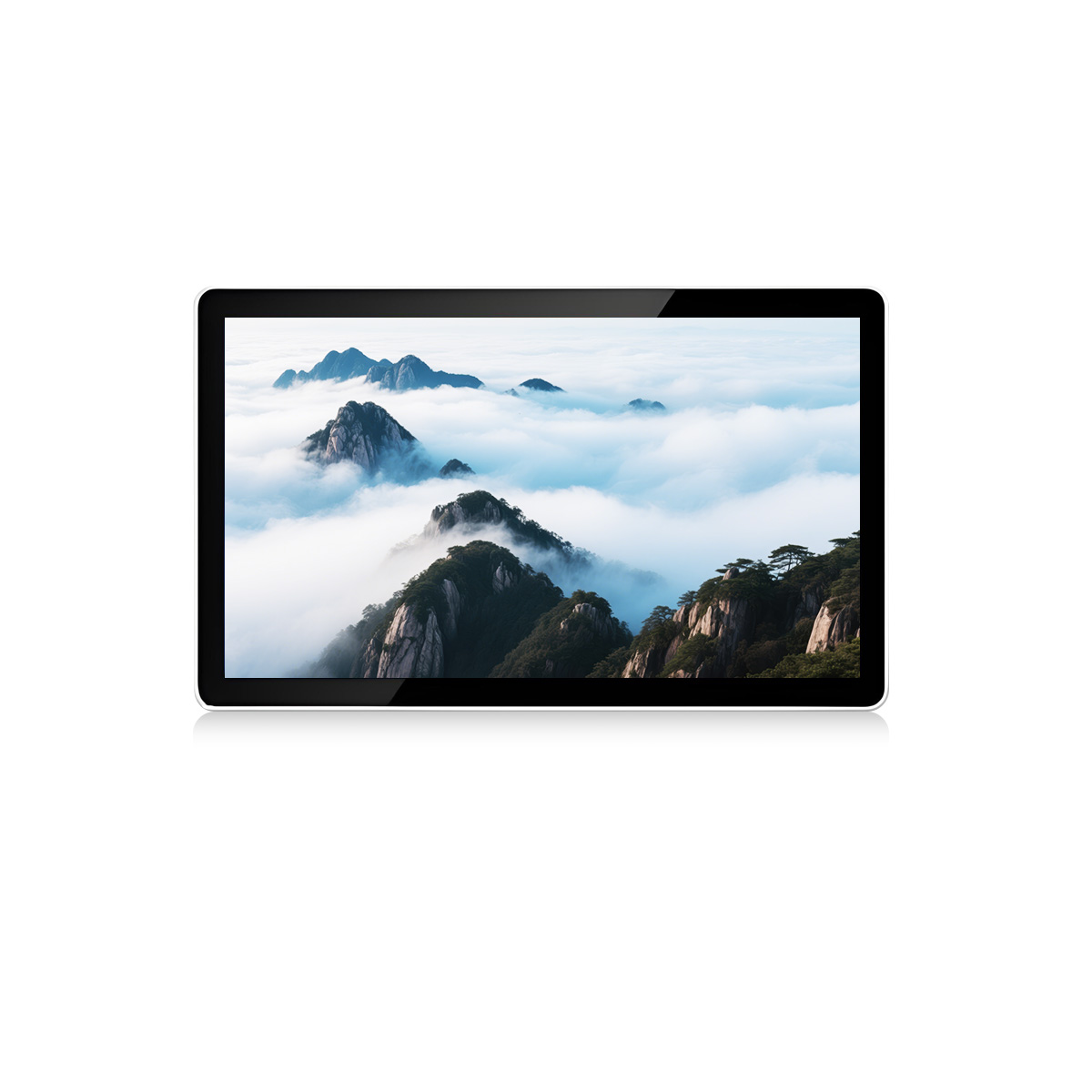

| Diagonal Size | 24inch Touch Module |
| Product Number | DR-T-G240-ILI-A01 |
| LCD | G240HW01 V1 |
| Resolution | 1920(RGB)×1080 |
| Brightness | 300 |
| Active Area(mm) | 531.36(W)×298.89(H) mm |
| Bezel Opening(mm) | 536.7(W)×305.6(H)×21.3(D) mm |
| Response Time | 16/9 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC |
| Contrast Ratio | 5000:1 |
| Surface | Antiglare, Hard coating (3H) |
| Power Supply | 5.0V |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Operating Temp | -20 ~ 70 °C |
| Storage Temp | -30 ~ 80 °C |
| Light Transmittance | >87% |
| Cover Glass | 3mm Tempered Glass |
| Surface Hardness | ≥6H |
| Touch Interface | USB |
| Touch Structure | G+G |
| Touch Controller | ILITEK |
| Operating environment | Industry |
| Warranty period | One Year |
