Position：| Items | Specification |

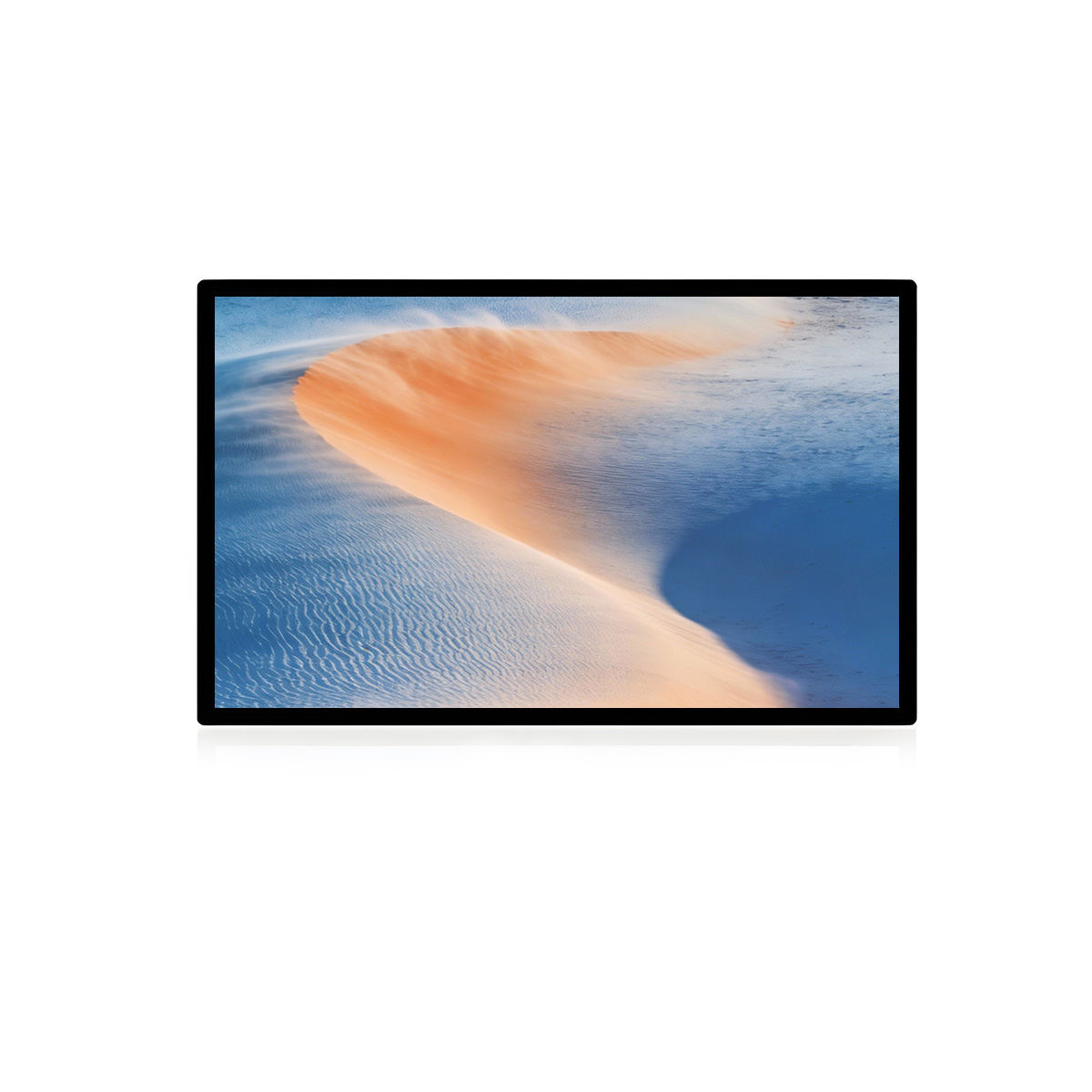

| Diagonal Size | 32inch Touch Module |
| Product Number | DR-T-G320-ILI-A01 |
| LCD | DV320FHM-NN0 |
| Resolution | 1920(RGB)×1080 |
| Brightness | 400 |
| Active Area(mm) | 698.4(W)×392.85(H) mm |
| Bezel Opening(mm) | 715.6(W)×412.3(H)×17.5(D) mm |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | ADSDS, Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC |
| Contrast Ratio | 1200:1 |
| Surface | Antiglare(Haze 1%) |
| Power Supply | 12.0V |
| Signal Interface | LVDS (2 ch,8-bit) , 51 pins Connector |
| Operating Temp | 0 ~ 50 °C |
| Storage Temp | -20 ~ 60 °C |
| Light Transmittance | >87% |
| Cover Glass | 3mm Tempered Glass |
| Surface Hardness | ≥6H |
| Touch Interface | USB |
| Touch Structure | G+G |
| Touch Controller | ILITEK |
| Operating environment | Commercial display |
| Warranty period | One Year |
