Position：| Items | Specification |

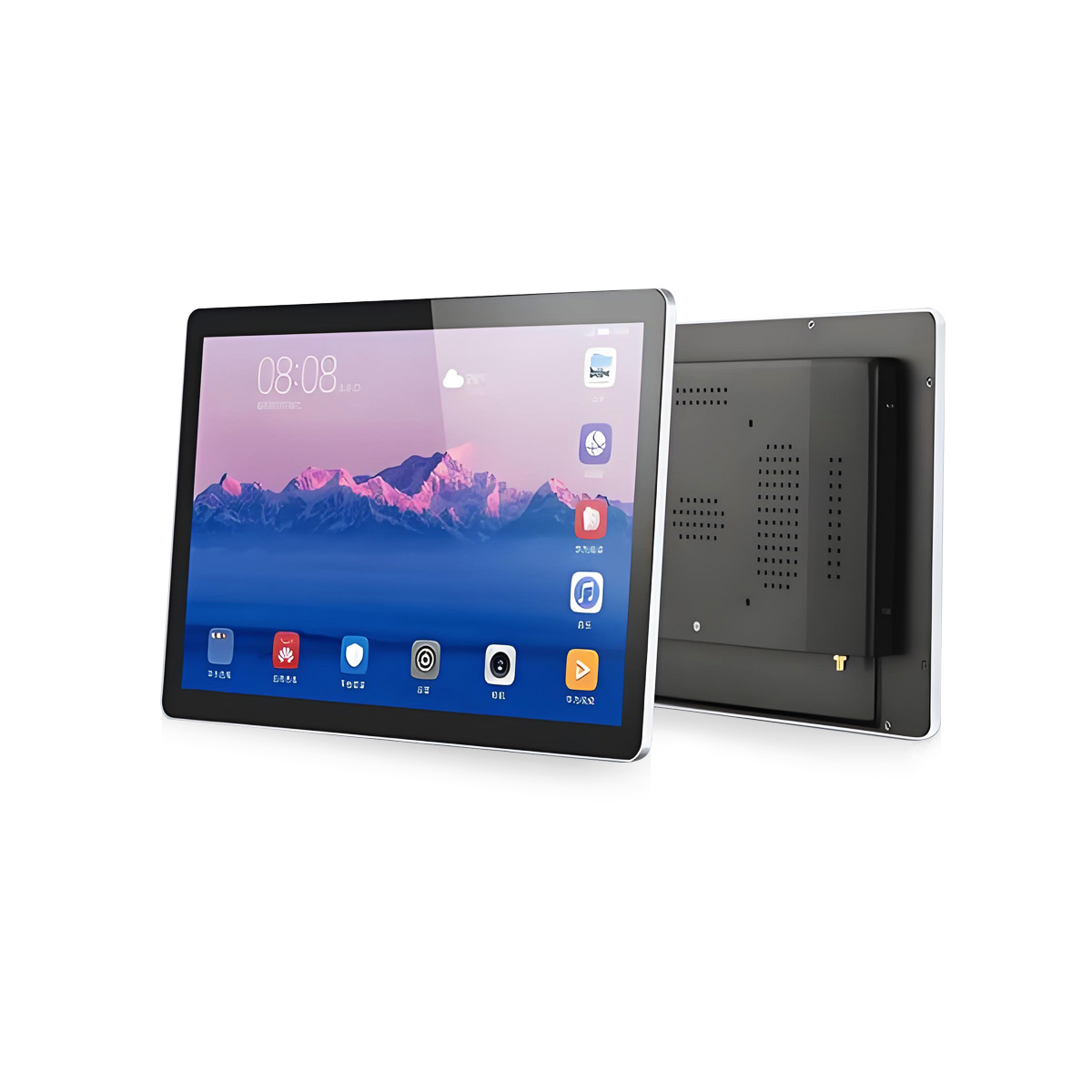

| Diagonal Size | 10.1inch Touch Monitor |
| Resolution | 1920(RGB)×1200 |
| Brightness | 500 |
| Active Area(mm) | 216.806(W) x 135.504(H) mm |
| Dimensions | 257(W)*175.6(H)*30 (T)mm |
| Response Time | 30(Typ.)(G to G) ms |
| Viewing Angle | 85/85/85/85 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | ADS, Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC |
| Contrast Ratio | 900:1 |
| Surface | - |
| Backlight | 7S7P WLED , No Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 45 pins Connector |
| Operating Temp | -0 ~ 50°C，20~80% RH, Non-condensing |
| Storage Temp | -20 ~ 60°C，10~90% RH, Non-condensing |
| Touch Technology | Projected Capacitive |
| Touch Structure | Cover Glass + ITO Glass |
| Touch Points | Multi-touch |
| Touch Interface | USB |
| Touch Controller | ILITEK |
| Ports | HDMI/VGA/Audio input |
| Frame | Alu Alloy, Black-Painted, Bending |
| Internal Structure | SECC Plates |
| Back Shell | SECC Black Painted |
| Others | N/A |
| Power Input | 12V |
| Rated Power | 15W |
| Loudspeaker | N/A |
| Shell Color | Black |
| Material | Alu Alloy/SECC |
| IP Level | Front Panel IP65 Compliant |
| ACCESSORIES | Power Cable |
