Position：| Items | Specification |

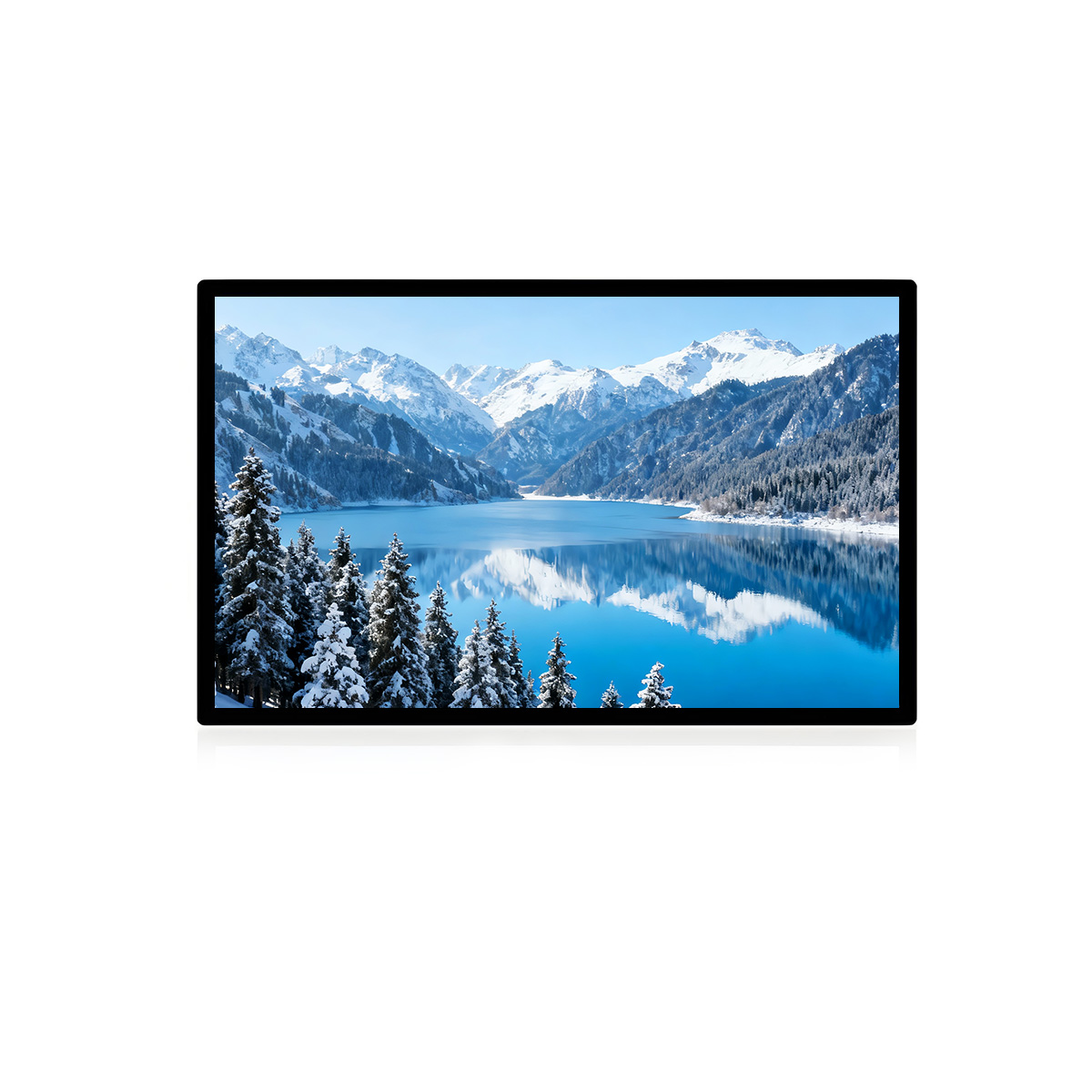

| Diagonal Size | 55inch Touch Monitor |
| Resolution | 3840(RGB)×2160 |
| Brightness | 800 |
| Active Area(mm) | 1209.6(W)×680.4(H) mm |
| Dimensions | 1245.7(W)×715.6(H)×82.3mm |
| Response Time | 8 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 |
| Pixel Format | RGB Vertical Stripe |
| Display Mode | ADS, Normally Black, Transmissive |
| Display Colors | 1.07B , 74% NTSC |
| Contrast Ratio | 1200:1 |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Backlight | WLED , 50K hours , With LED Driver |
| Signal Interface | V-by-One 8 lane , 51 pins Connector |
| Operating Temp | -0 ~ 50°C，20~80% RH, Non-condensing |
| Storage Temp | -20 ~ 60°C，10~90% RH, Non-condensing |
| Touch Technology | Projected Capacitive |
| Touch Structure | Cover Glass + ITO Glass |
| Touch Points | Multi-touch |
| Touch Interface | USB |
| Touch Controller | ILITEK |
| Ports | HDMI-in*1, USB2.0*1, USB3.0*1, DP*1, |
| Frame | Alu Alloy, Black-Painted, Bending |
| Internal Structure | SECC Plates |
| Back Shell | SECC Black Painted |
| Others | N/A |
| Power Input | 220V |
| Rated Power | 60W |
| Loudspeaker | N/A |
| Shell Color | Black |
| Material | Alu Alloy/SECC |
| ACCESSORIES | Power Cable |
