| Brand | NLT |

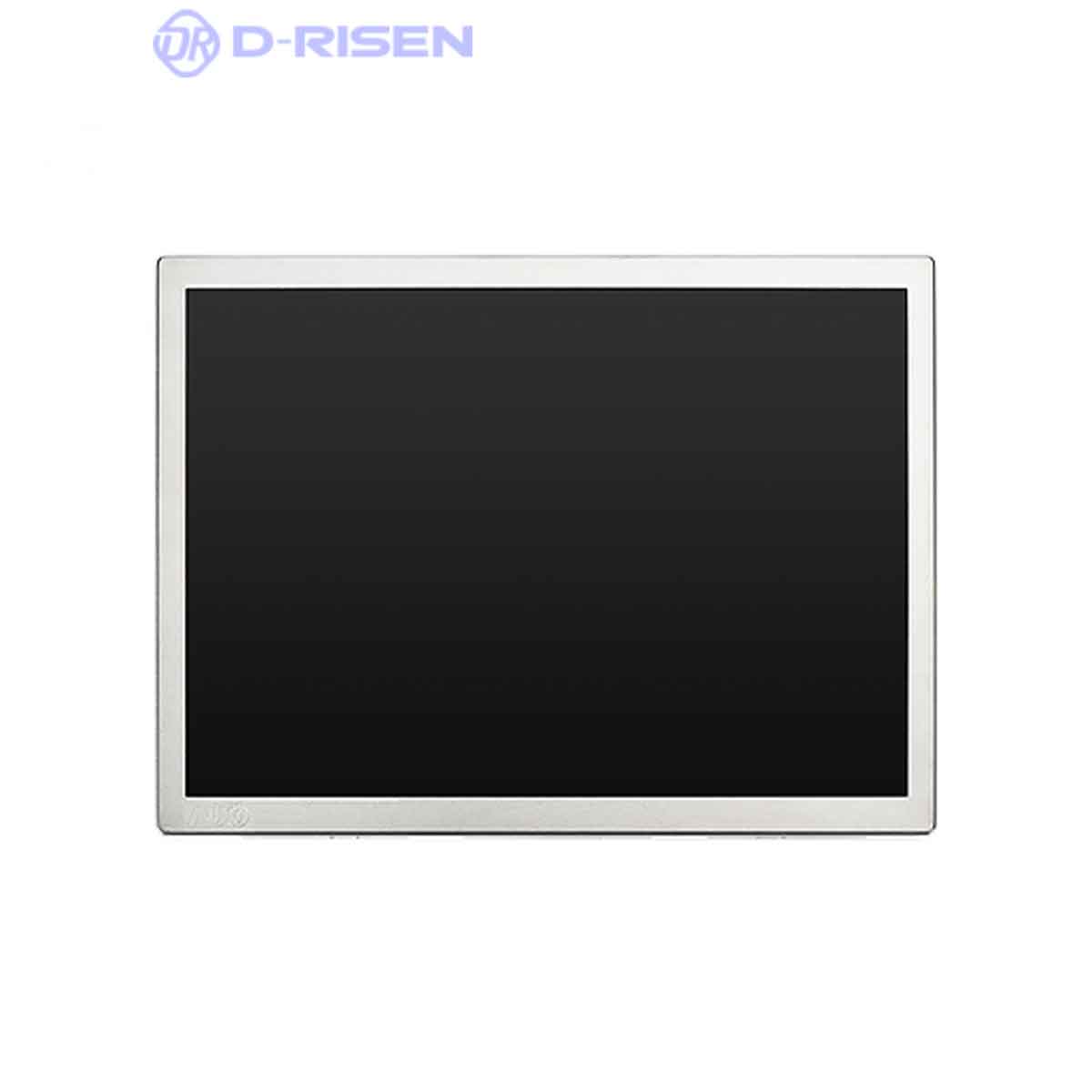

| Model P/N | NL6448AC18-08D |
| Diagonal Size | 5.7" |
| Resolution | 640(RGB)×480, VGA 141PPI |
| Active Area(mm) | 115.2(W)×86.4(H) mm |
| Bezel Opening(mm) | 118.2(W)×89.4(H) mm |
| Outline Dim.(mm) | 144 × 104.6 × 12.8 (H×V×D) |
| Brightness | 550 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Treatment | Antiglare, Hard coating (3H) |
| Response Time | 3/15 (Typ.)(Tr/Td) ms |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED , 70K hours , With LED Driver |
| Interface Type | CMOS (1 ch, 6-bit) , 33 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| Touchscreen | Without |
| Package | 10pcs/Carton Original Package |
