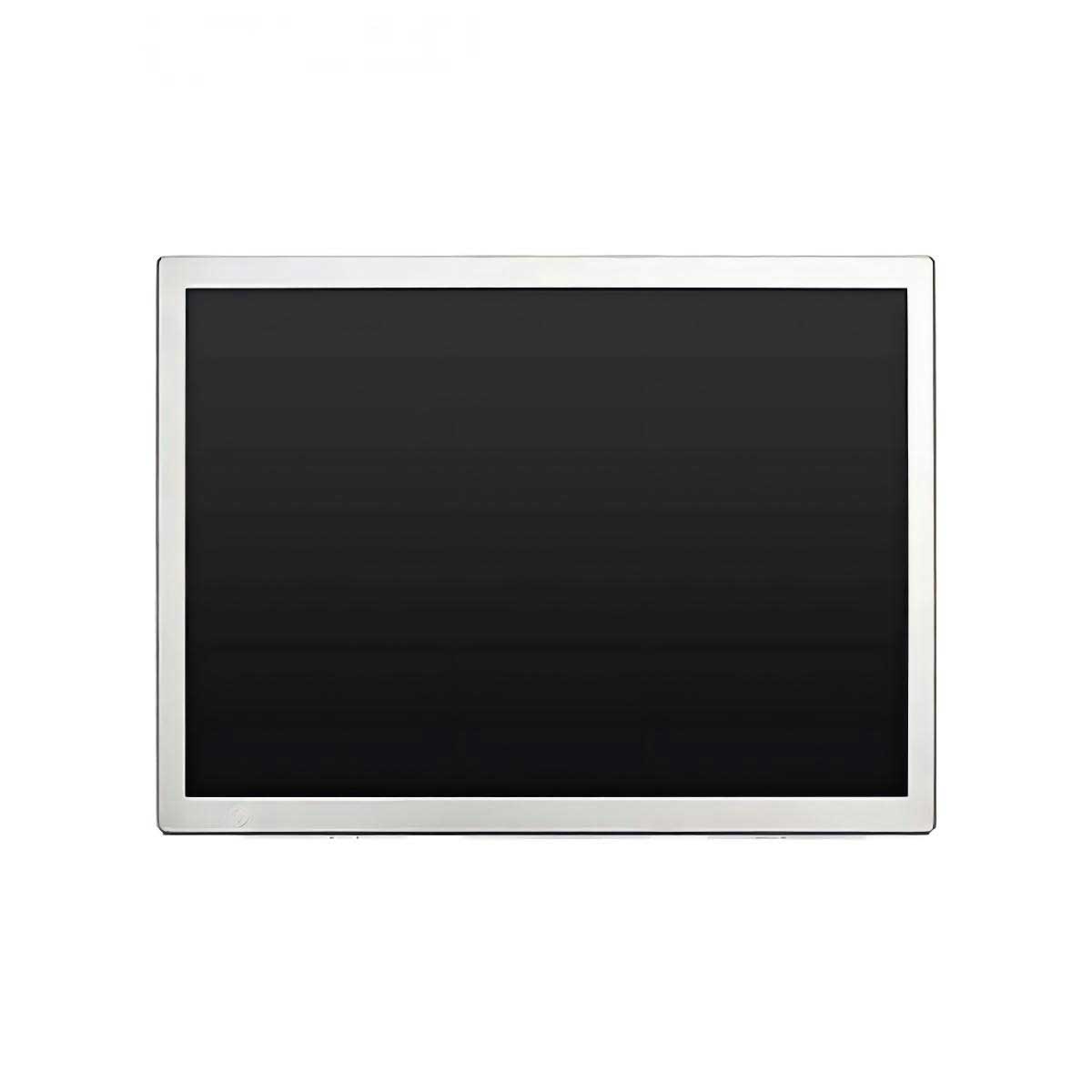

| Brand | TIANMA |
| Model P/N | TM101JDHP01-00 |
| Diagonal Size | 10.1" |
| Resolution | 1280(RGB)×800, WXGA 149PPI |
| Brightness | 400 cd/m² (Typ.) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Surface | Hard coating |
| Display Mode | SFT, Normally Black, Transmissive |
| Active Area(mm) | 216.96(W)×135.6(H) mm |
| Bezel Opening(mm) | - |
| Outline Dim.(mm) | 229.46(W)×149.1(H)×4.6(D) mm |
| Voltage Supply | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Signal Type | LVDS (1 ch, 8-bit) 40 pins Connector |
| Backlight | WLED [3S11P] , 30K hours , W/O Driver |
| Max. Ratings | Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Touchscreen | Without |
| Package | 12pcs/Carton Size: 520×345×74mm Original Package |
